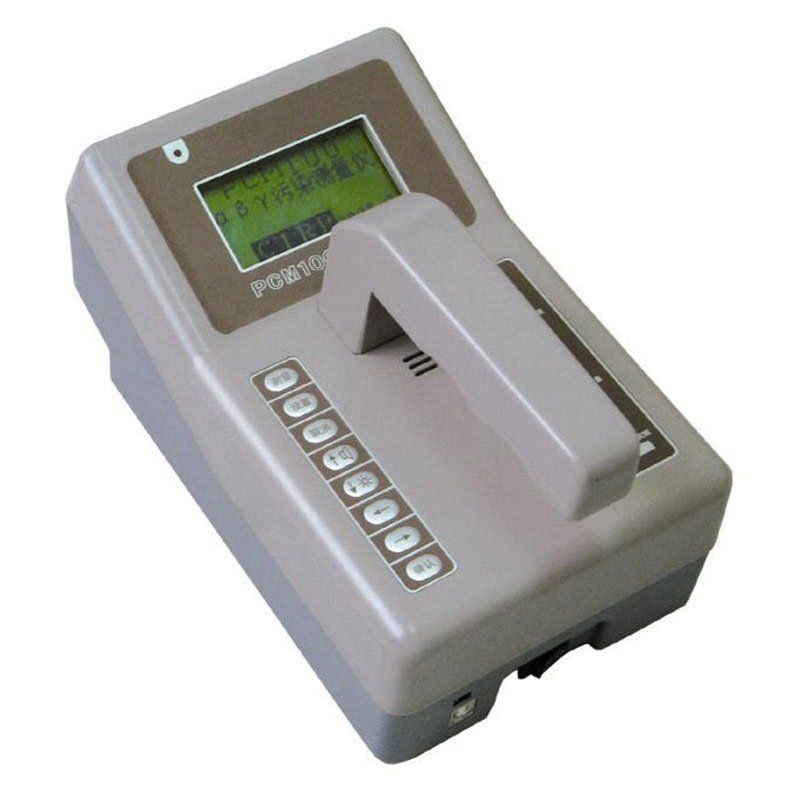

The PCM100 is an integrated portable surface contamination monitor designed to measure alpha, beta and gamma contamination. The manufacturer states that it uses three end-window GM tubes with a combined 45 cm² sensitive area and supports count, CPS, Bq and Bq/cm² display modes.
The PCM100 may support contamination surveys in nuclear facilities, decommissioning projects, radioactivity laboratories and other controlled areas. Buyers should define target radionuclides, scan geometry, required efficiency, background conditions, units, calibration sources and data-record requirements.
NRD listing status: This page is a sourcing and quotation reference. Supply, exact revision, supporting documents, lead time and commercial terms are confirmed for each enquiry.
We will confirm the current revision, configuration, available documents, MOQ, lead time and commercial terms.
The following values are attributed to the manufacturer source. They support initial comparison, but buyers should confirm the current data sheet, test conditions and exact quoted configuration before ordering.
| Parameter | Manufacturer-stated value | Buyer check |
|---|---|---|
| Detector | Three end-window GM counter tubes | Confirm with the current quotation and data sheet |
| Radiation types | Alpha, beta and gamma | Confirm with the current quotation and data sheet |
| Sensitive area | 45 cm² total | Confirm with the current quotation and data sheet |
| Display units | Total count, CPS, Bq and Bq/cm² | Confirm with the current quotation and data sheet |
| Count-rate range | 0.1 to 100,000 CPS | Confirm with the current quotation and data sheet |
| Surface activity range | 0.1 to 1,000 Bq/cm² | Confirm with the current quotation and data sheet |
| Energy lower limit | Alpha 2.5 MeV, beta 30 keV, gamma 5 keV | Confirm with the current quotation and data sheet |
| Power | 4.2 V rechargeable battery, more than 100 hours stated operation | Confirm with the current quotation and data sheet |
| Dimensions | 226 x 140 x 88 mm | Confirm with the current quotation and data sheet |
| Weight | Approximately 1.5 kg | Confirm with the current quotation and data sheet |
We will confirm the current revision, configuration, available documents, MOQ, lead time and commercial terms.
Describe the radiation type, expected range, operating workflow and required evidence when requesting this configuration.
Describe the radiation type, expected range, operating workflow and required evidence when requesting this configuration.
Describe the radiation type, expected range, operating workflow and required evidence when requesting this configuration.
Describe the radiation type, expected range, operating workflow and required evidence when requesting this configuration.
Confirm detector technology, production revision, firmware, interface language, accessories and package contents.
State radiation type, expected range, units, background conditions, alarms and operating environment.
Name the required data sheet, calibration field, standard, issuing body, traceability and report language.
Confirm quantity, MOQ, sample route, lead time, packaging, Incoterms, warranty and support before payment.
Stock is not claimed on this website. Current revision, quantity and lead time are confirmed during quotation.
Calibration scope is confirmed for the exact quoted unit. State the required standard, laboratory and destination-market needs.
Labels, language, packaging and accessories can be reviewed for qualified quantities. Feasibility and MOQ depend on the supplier route.
Configuration, quantity, documentation, destination, shipping and customization can change B2B commercial terms.
The sensing technology determines which radiation can be measured and how the instrument responds.
The range states the minimum and maximum values under specified conditions.
Energy response describes how detector sensitivity changes across radiation energies.
An alarm threshold is a user-set level that triggers an audible, visual or vibration alert.
Calibration evidence documents how a specific instrument was checked against stated references.
Share your application, required quantity and any OEM requirements. We will review the request and reply with suitable product information and a quotation.
