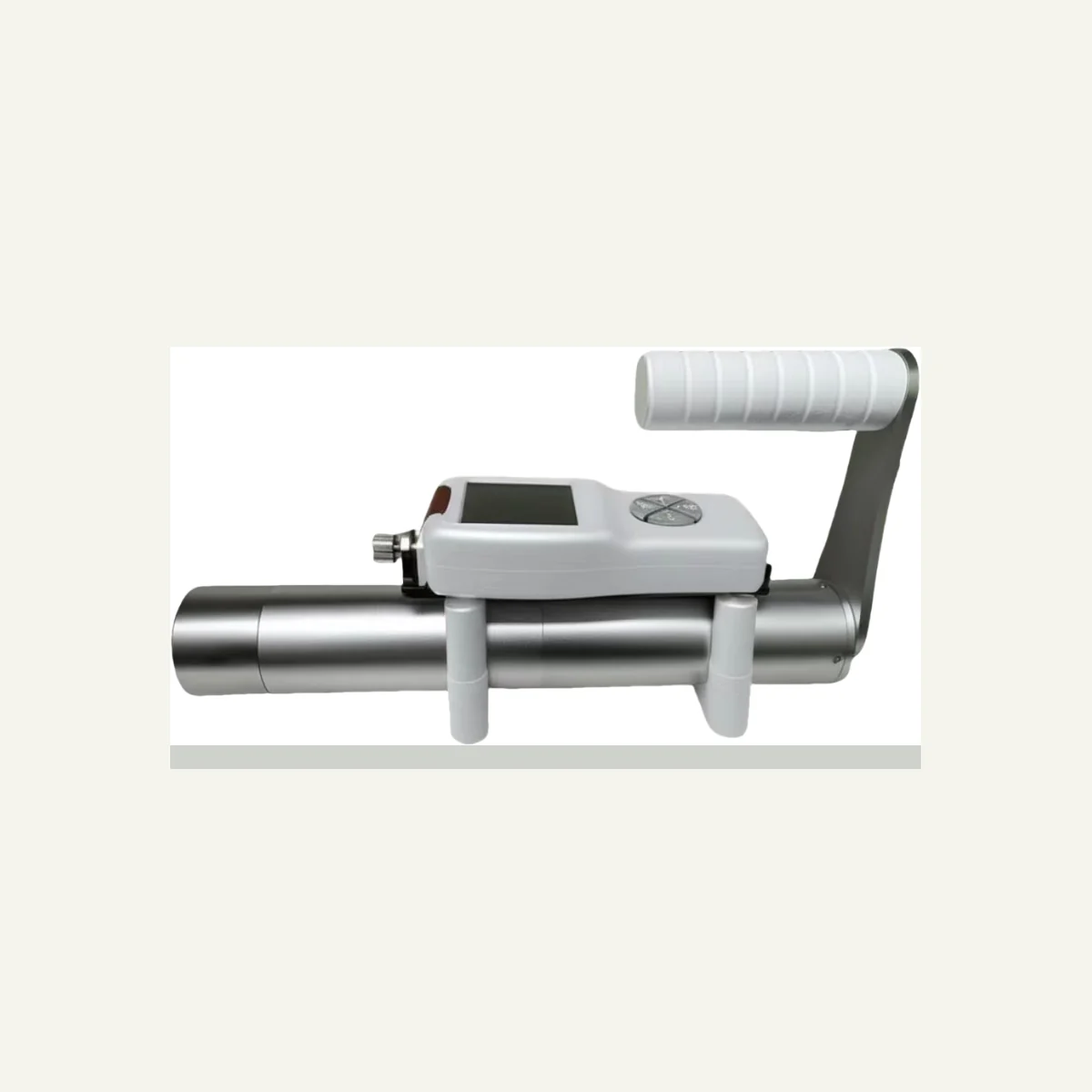

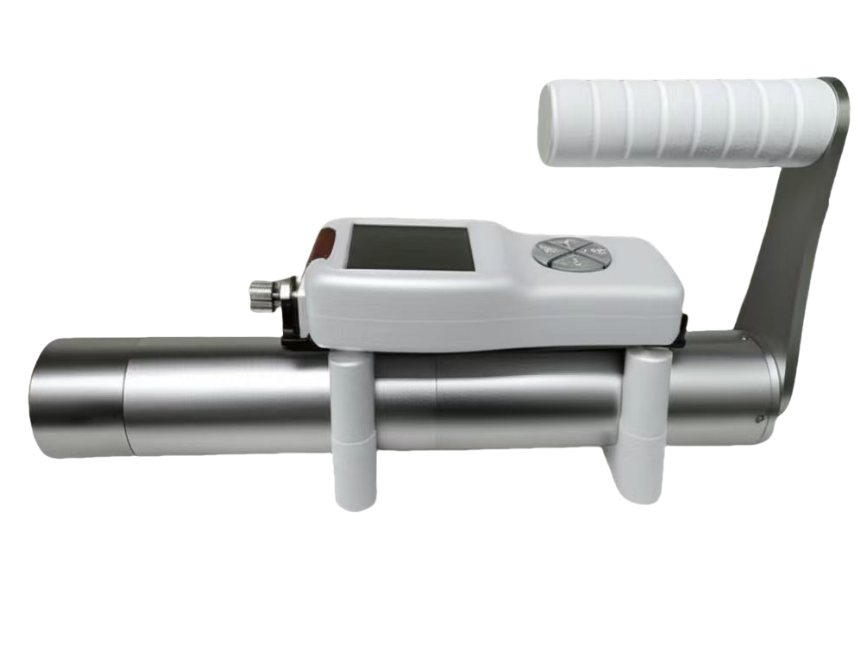

The YD-530 is a portable environmental X-ray and gamma survey meter designed for high sensitivity and a measurement span of up to nine orders of magnitude. The manufacturer states that its plastic scintillator and signal processing support fast response and short-duration pulsed radiation detection.
It may fit medical, occupational health, environmental, metallurgy, petroleum, laboratory, nuclear medicine, industrial NDT and geological survey work. Buyers should define normal and peak dose rates, pulse conditions, communication method and calibration route.
NRD listing status: This page is a sourcing and quotation reference. Supply, exact revision, supporting documents, lead time and commercial terms are confirmed for each enquiry.
We will confirm the current revision, configuration, documents, MOQ, lead time and commercial terms.
The following values are attributed to the manufacturer source. They support initial comparison, but buyers should confirm the current data sheet, test conditions and exact quoted configuration before ordering.
| Parameter | Manufacturer-stated value | Buyer check |
|---|---|---|
| Detector | 30 x 15 mm plastic scintillator with photomultiplier tube | Confirm against the current quotation and data sheet |
| Radiation types | X-ray and gamma | Confirm against the current quotation and data sheet |
| Energy response | 15 keV to 6.0 MeV | Confirm against the current quotation and data sheet |
| Dose-rate range | 100 nSv/h to 1 Sv/h; optional 0 to 10 Sv/h | Confirm against the current quotation and data sheet |
| Sensitivity | At least 100 cps per µSv/h | Confirm against the current quotation and data sheet |
| Relative intrinsic error | No more than plus or minus 10% for Cs-137 at 100 µSv/h | Confirm against the current quotation and data sheet |
| Response time | 1 second | Confirm against the current quotation and data sheet |
| Communication | RS485 and RS232; optional Bluetooth, LoRa, ZigBee, cellular or Wi-Fi | Confirm against the current quotation and data sheet |
| Protection rating | IP65 | Confirm against the current quotation and data sheet |
| Power | 7.4 V rechargeable lithium battery; stated 12-hour operation | Confirm against the current quotation and data sheet |
We will confirm the current revision, configuration, documents, MOQ, lead time and commercial terms.
State the radiation type, expected range, operating workflow and required evidence when requesting this configuration.
State the radiation type, expected range, operating workflow and required evidence when requesting this configuration.
State the radiation type, expected range, operating workflow and required evidence when requesting this configuration.
State the radiation type, expected range, operating workflow and required evidence when requesting this configuration.
Confirm detector technology, production revision, firmware, interface language, accessories and package contents.
State radiation type, expected range, units, background conditions, alarms and operating environment.
Name the required data sheet, calibration field, standard, issuing body, traceability and report language.
Confirm quantity, MOQ, sample route, lead time, packaging, Incoterms, warranty and support before payment.
Stock is not claimed on this website. Current revision, quantity and lead time are confirmed during quotation.
Calibration scope is confirmed for the exact quoted unit. State the required standard, laboratory and destination-market needs.
Labels, language, packaging and accessories can be reviewed for qualified quantities. Feasibility and MOQ depend on the supplier route.
Configuration, quantity, documents, destination, shipping and customization can change B2B commercial terms.
The sensing technology determines which radiation can be measured and how the instrument responds.
The range states the minimum and maximum values under specified conditions.
Energy response describes how detector sensitivity changes across radiation energies.
An alarm threshold is a user-set level that triggers an audible, visual or vibration alert.
Calibration evidence documents how a specific instrument was checked against stated references.
