The YD-800 is a fixed area radiation monitoring system for continuous X-ray and gamma dose-rate measurement. The manufacturer states that one host supports four detector channels as standard, with expansion beyond 30 channels, automatic probe recognition, RS485 communication and high plus low alarm thresholds for each probe.
The YD-800 may be configured for nuclear facilities, radioactive-waste storage, industrial radiography, irradiation facilities, diagnostic X-ray rooms and nuclear medicine. Project design should define detector technology, measurement range, probe quantity, cable distance, relay outputs, power continuity and supervisory software requirements.
NRD listing status: This page is a sourcing and quotation reference. Supply, exact revision, documentation, lead time and commercial terms are confirmed for each enquiry.
We will confirm the current revision, configuration, available documents, MOQ, lead time and commercial terms.
The following values are attributed to the manufacturer source page. They are useful for initial model comparison, but the current data sheet, test conditions and final order configuration must be checked before purchase.
| Parameter | Manufacturer-stated value | Buyer check |
|---|---|---|

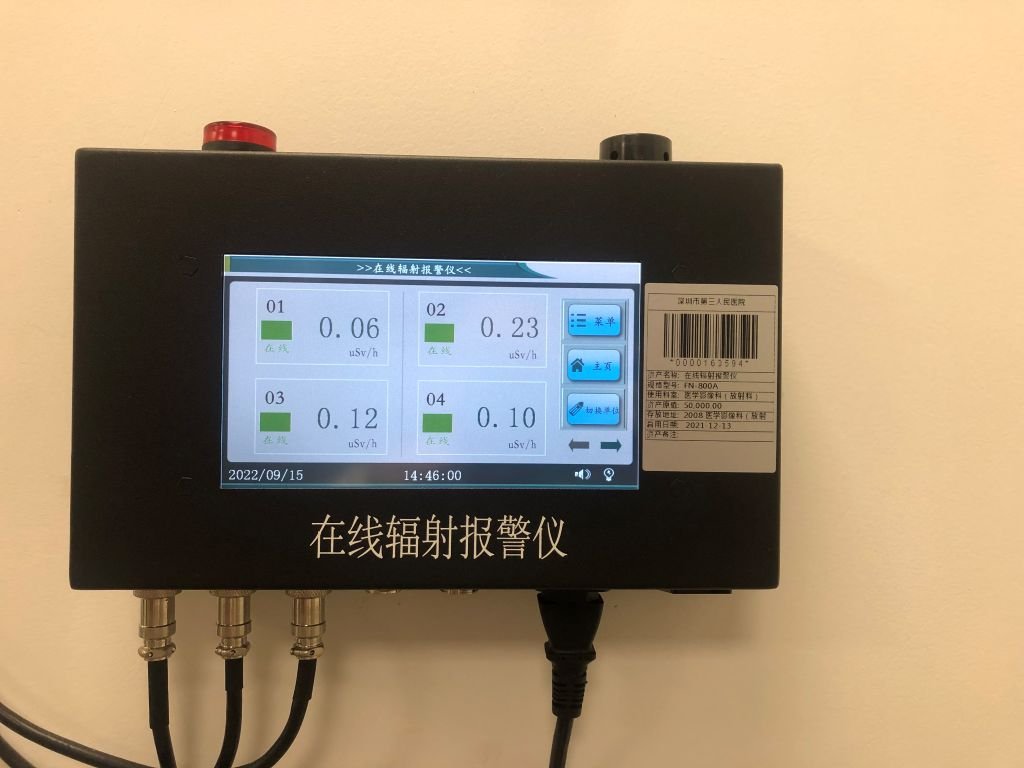

| Host display | 7-inch, 1024 x 600 IPS touchscreen | Confirm against the current model revision and quotation |
| Standard channels | Four probes, expandable beyond 30 channels | Confirm against the current model revision and quotation |
| Communication | RS485, manufacturer-stated distance up to 800 m | Confirm against the current model revision and quotation |
| Alarm functions | High and low thresholds, audible and visual alarms, optional external alarm and relay output | Confirm against the current model revision and quotation |
| GM detector range | 0.01 µSv/h to 2.5 mSv/h, optional up to 1 Sv/h | Confirm against the current model revision and quotation |
| GM energy response | 48 keV to 3 MeV | Confirm against the current model revision and quotation |
| GM response time | No more than 2 seconds | Confirm against the current model revision and quotation |
| Scintillation detector | Scintillator with photomultiplier tube | Confirm against the current model revision and quotation |
| Scintillation range | 0.01 µSv/h to 10 mSv/h | Confirm against the current model revision and quotation |
| Scintillation energy response | 38 keV to 7 MeV | Confirm against the current model revision and quotation |
| Power | 220 V AC, optional built-in battery | Confirm against the current model revision and quotation |
| Host dimensions | 260 x 160 x 68 mm excluding stand | Confirm against the current model revision and quotation |
We will confirm the current revision, configuration, available documents, MOQ, lead time and commercial terms.
YD-800 should be selected by measurement task rather than appearance alone. The category routes below describe common enquiry contexts, not automatic suitability claims.
Describe the operating environment, target radiation, workflow and required evidence when requesting this configuration.
Describe the operating environment, target radiation, workflow and required evidence when requesting this configuration.
Describe the operating environment, target radiation, workflow and required evidence when requesting this configuration.
Describe the operating environment, target radiation, workflow and required evidence when requesting this configuration.
Confirm the detector technology, production revision, firmware, interface language and supplied accessories for the quoted unit.
State the radiation type, expected range, units, background conditions, alarm workflow and operating environment.
Name the required data sheet, calibration scope, test report, standard, issuing body and destination-market documents.
Confirm quantity, MOQ, sample route, lead time, packaging, Incoterms, warranty and after-sales support before payment.
Stock is not claimed on this website. NRD confirms the current production revision, quantity, lead time and shipment terms during the quotation process.
Calibration evidence is confirmed for the exact quoted configuration. Buyers should specify the required standard, laboratory, traceability and report language.
Branding, labels, language, packaging and accessories can be reviewed for qualified quantities. Feasibility, MOQ, sample approval and tooling depend on the supplier route.
This is a B2B quotation product. Configuration, quantity, documentation, destination, shipping and customization can materially change the commercial terms.
An area radiation monitor continuously measures radiation at a fixed location and generates alarms when thresholds are crossed.
RS485 is a wired industrial communication standard used for long-distance device networks.

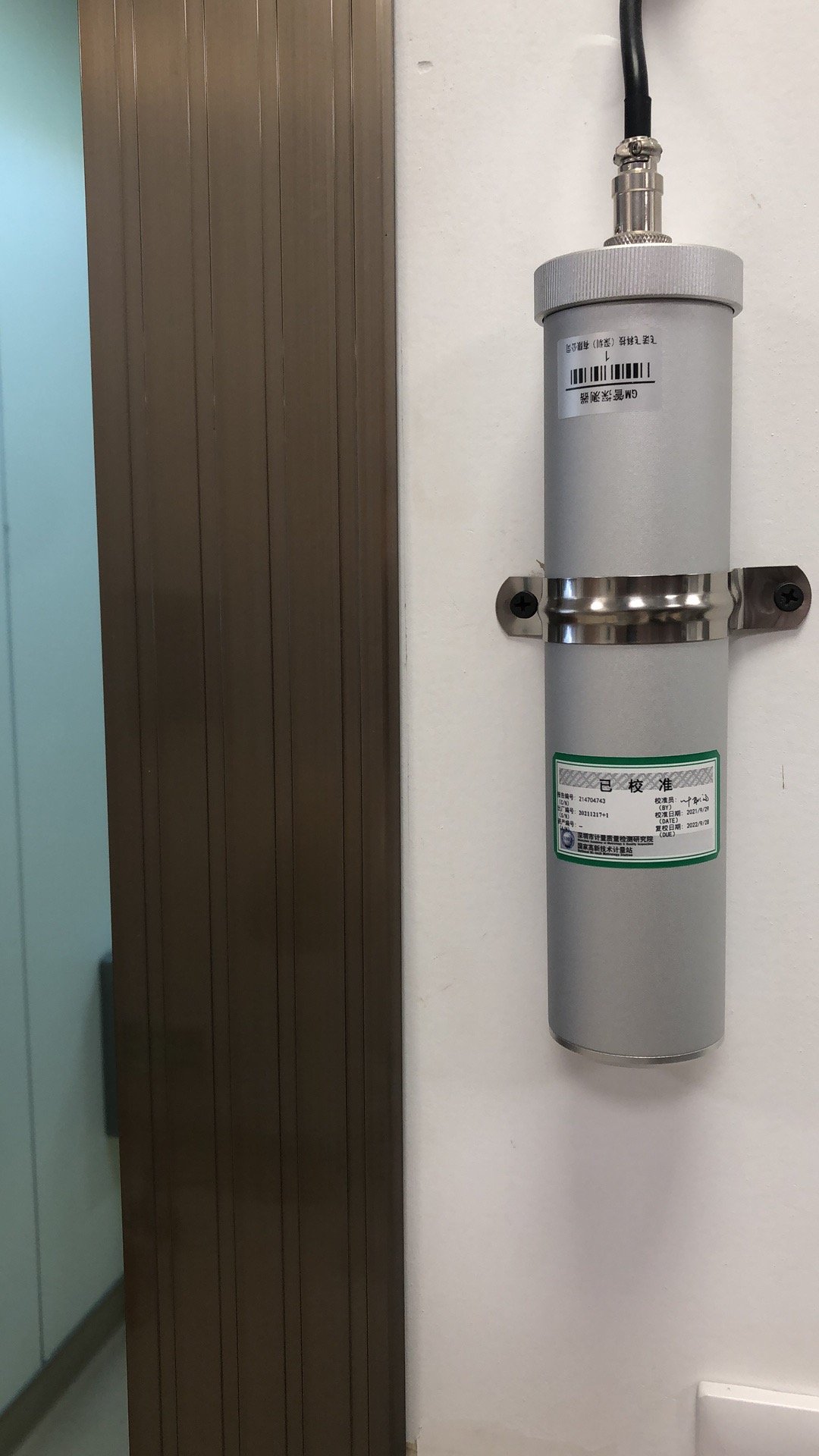

A probe channel is one detector input monitored independently by the host.
A relay output can activate an external alarm, interlock or control system.
A scintillation detector converts radiation energy into light that is measured electronically.
