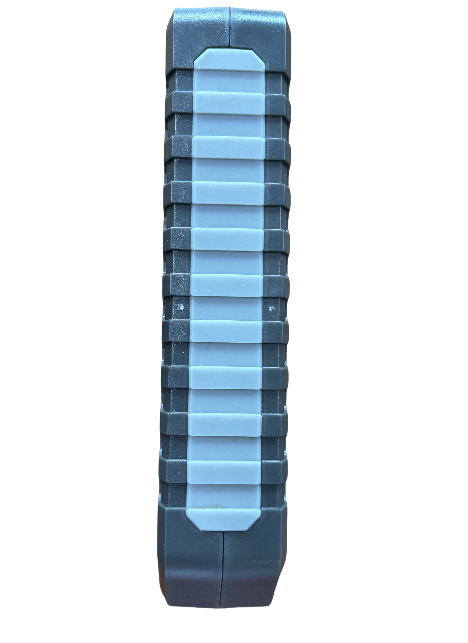

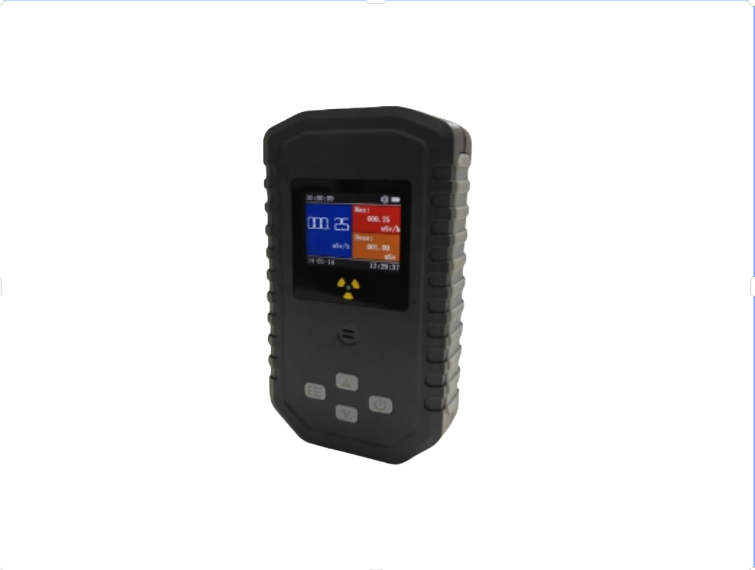

The YD-8015D is a multi-function handheld radiation survey meter designed for alpha, beta, gamma and X-ray measurement. Its manufacturer states that the instrument uses a 44.5 mm mica-window GM counter and supports dose rate, cumulative dose, CPM and surface activity measurement modes.
The YD-8015D may fit radiation protection surveys, laboratory checks, environmental monitoring, medical facilities and industrial screening. The mica window supports broader radiation response than a closed-wall GM tube, but buyers must confirm window handling, target radionuclides, efficiency, calibration scope and the required reporting units.
NRD listing status: This page is a sourcing and quotation reference. Supply, exact revision, documentation, lead time and commercial terms are confirmed for each enquiry.
We will confirm the current revision, configuration, available documents, MOQ, lead time and commercial terms.
The following values are attributed to the manufacturer source page. They are useful for initial model comparison, but the current data sheet, test conditions and final order configuration must be checked before purchase.
| Parameter | Manufacturer-stated value | Buyer check |
|---|---|---|
| Detector | Mica-window GM counter, 44.5 mm effective diameter | Confirm against the current model revision and quotation |
| Window areal density | 1.5 to 2.0 mg/cm² | Confirm against the current model revision and quotation |
| Radiation types | Alpha, beta, X-ray and gamma | Confirm against the current model revision and quotation |
| Energy response | 50 keV to 3 MeV | Confirm against the current model revision and quotation |
| Dose-rate range | 0.05 µSv/h to 1 mSv/h | Confirm against the current model revision and quotation |
| Cumulative dose | 0 to 999.99 mSv | Confirm against the current model revision and quotation |
| Count-rate range | 0 to 300,000 CPM | Confirm against the current model revision and quotation |
| Surface activity range | 0 to 500 Bq/cm² | Confirm against the current model revision and quotation |
| Sensitivity | More than 360 CPM at 1 µSv/h for Cs-137 | Confirm against the current model revision and quotation |
| Response time | 1 second | Confirm against the current model revision and quotation |
| Power | 3.7 V, 1000 mAh rechargeable lithium battery | Confirm against the current model revision and quotation |
| Size and weight | 148 x 80 x 30 mm, approximately 230 g excluding battery | Confirm against the current model revision and quotation |
We will confirm the current revision, configuration, available documents, MOQ, lead time and commercial terms.
YD-8015D should be selected by measurement task rather than appearance alone. The category routes below describe common enquiry contexts, not automatic suitability claims.
Describe the operating environment, target radiation, workflow and required evidence when requesting this configuration.
Describe the operating environment, target radiation, workflow and required evidence when requesting this configuration.
Describe the operating environment, target radiation, workflow and required evidence when requesting this configuration.
Describe the operating environment, target radiation, workflow and required evidence when requesting this configuration.
Confirm the detector technology, production revision, firmware, interface language and supplied accessories for the quoted unit.
State the radiation type, expected range, units, background conditions, alarm workflow and operating environment.
Name the required data sheet, calibration scope, test report, standard, issuing body and destination-market documents.
Confirm quantity, MOQ, sample route, lead time, packaging, Incoterms, warranty and after-sales support before payment.
Stock is not claimed on this website. NRD confirms the current production revision, quantity, lead time and shipment terms during the quotation process.
Calibration evidence is confirmed for the exact quoted configuration. Buyers should specify the required standard, laboratory, traceability and report language.
Branding, labels, language, packaging and accessories can be reviewed for qualified quantities. Feasibility, MOQ, sample approval and tooling depend on the supplier route.
This is a B2B quotation product. Configuration, quantity, documentation, destination, shipping and customization can materially change the commercial terms.
A radiation survey meter is a portable instrument used to assess radiation levels in an area or on an object.
A thin mica window allows lower-penetration alpha and beta particles to reach the detector.
Counts per minute is a count-rate unit and is not automatically equivalent to dose rate.
Becquerels per square centimetre expresses surface activity concentration.
Relative intrinsic error describes measurement deviation under stated reference conditions.
Share your application, required quantity and any OEM requirements. We will review the request and reply with suitable product information and a quotation.
