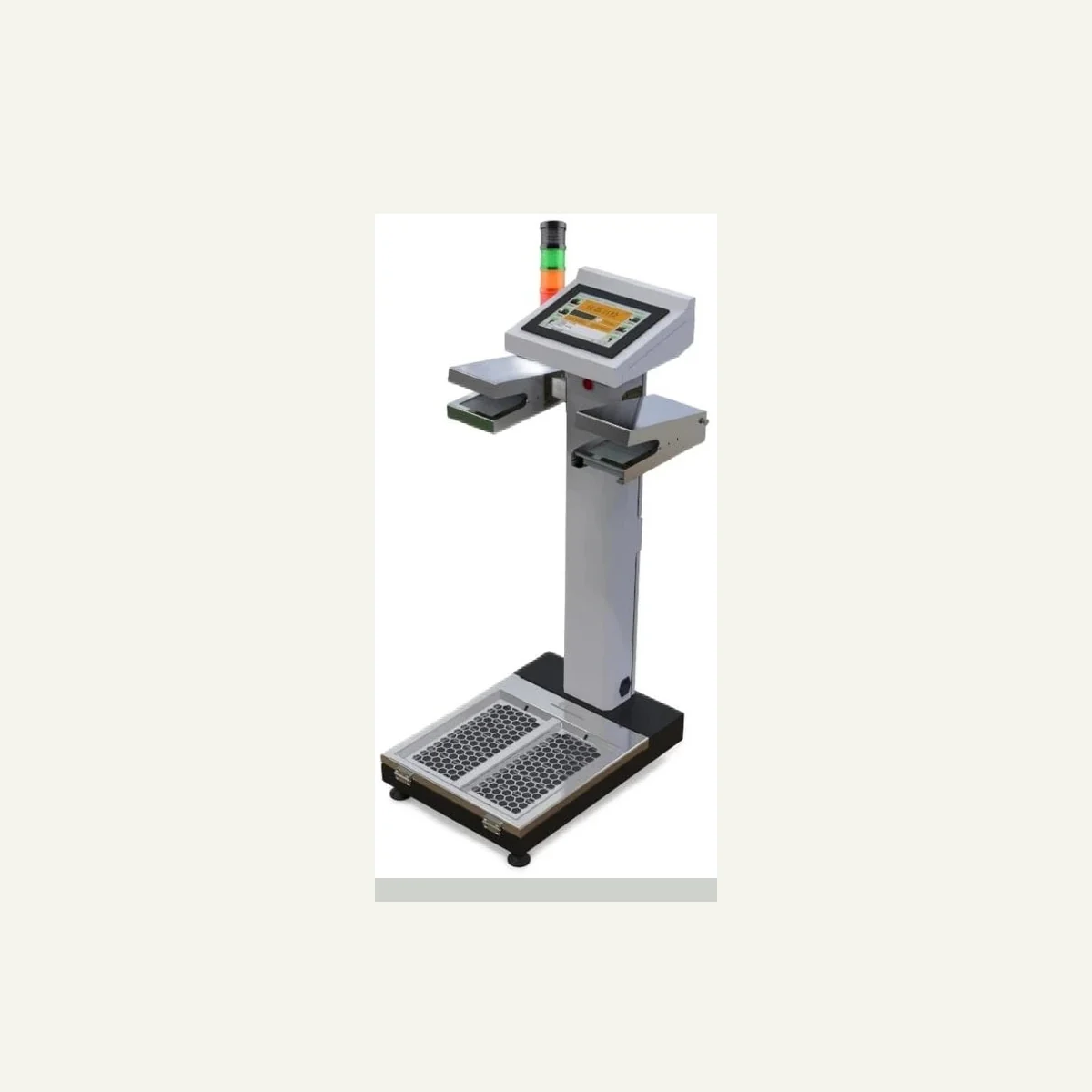

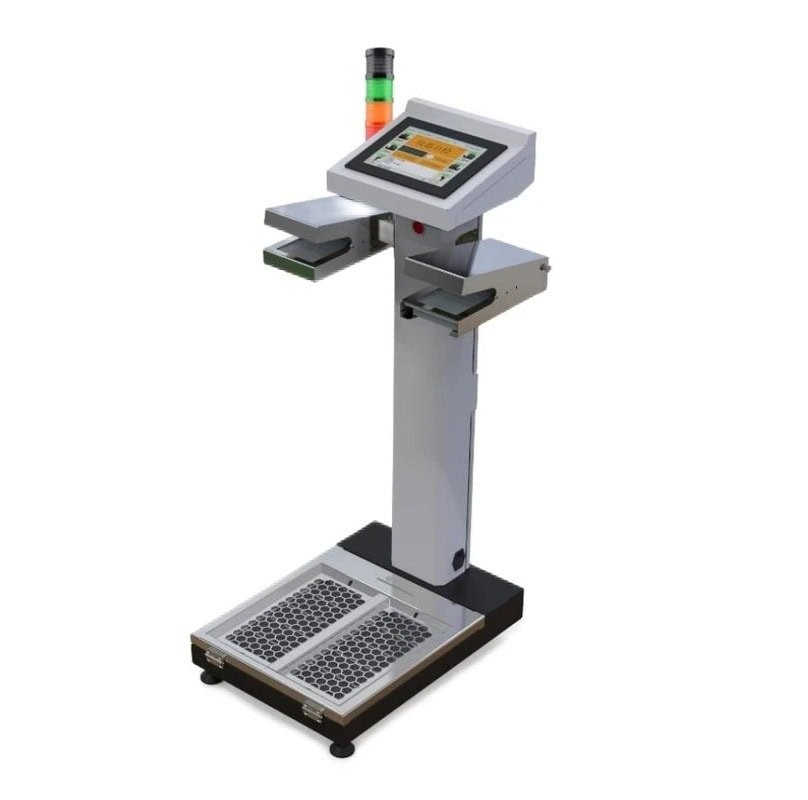

The HFM100TS is a fixed hand and foot surface contamination monitor for controlled-area exit checks. It can be configured for alpha and beta measurement or beta-only measurement and uses four detector assemblies to check hands and feet in a guided two-step process.
It may suit nuclear facilities, radiochemical laboratories, isotope production, waste operations and other contamination-controlled workplaces. Project teams should confirm measurement mode, radionuclides, background, workflow, calibration sources and installation space.
NRD listing status: This page is a sourcing and quotation reference. Supply, exact revision, supporting documents, lead time and commercial terms are confirmed for each enquiry.
We will confirm the current revision, configuration, documents, MOQ, lead time and commercial terms.
The following values are attributed to the manufacturer source. They support initial comparison, but buyers should confirm the current data sheet, test conditions and exact quoted configuration before ordering.
| Parameter | Manufacturer-stated value | Buyer check |
|---|---|---|
| Measurement type | Alpha and beta, or beta-only configuration | Confirm against the current quotation and data sheet |
| Detectors | Four ZnS(Ag) composite plastic scintillators or plastic scintillators | Confirm against the current quotation and data sheet |
| Alpha efficiency | At least 30% for hands and feet using Pu-239 under stated geometry | Confirm against the current quotation and data sheet |
| Beta efficiency | At least 30% for hands and feet using Sr-90 and Y-90 under stated geometry | Confirm against the current quotation and data sheet |
| Alpha detection limit | No more than 0.04 Bq/cm² at 10 seconds and stated background | Confirm against the current quotation and data sheet |
| Beta detection limit | No more than 0.4 Bq/cm² at 10 seconds and stated background | Confirm against the current quotation and data sheet |
| Workflow | Two-step measurement with voice prompts and contamination alarm | Confirm against the current quotation and data sheet |
| Records | Measurement, alarm, calibration and probe parameter records | Confirm against the current quotation and data sheet |
| Power | AC 220 V; no more than 70 W | Confirm against the current quotation and data sheet |
| Size and weight | 1560 x 580 x 700 mm; 65 kg | Confirm against the current quotation and data sheet |
We will confirm the current revision, configuration, documents, MOQ, lead time and commercial terms.
State the radiation type, expected range, operating workflow and required evidence when requesting this configuration.
State the radiation type, expected range, operating workflow and required evidence when requesting this configuration.
State the radiation type, expected range, operating workflow and required evidence when requesting this configuration.
State the radiation type, expected range, operating workflow and required evidence when requesting this configuration.
Confirm detector technology, production revision, firmware, interface language, accessories and package contents.
State radiation type, expected range, units, background conditions, alarms and operating environment.
Name the required data sheet, calibration field, standard, issuing body, traceability and report language.
Confirm quantity, MOQ, sample route, lead time, packaging, Incoterms, warranty and support before payment.
Stock is not claimed on this website. Current revision, quantity and lead time are confirmed during quotation.
Calibration scope is confirmed for the exact quoted unit. State the required standard, laboratory and destination-market needs.
Labels, language, packaging and accessories can be reviewed for qualified quantities. Feasibility and MOQ depend on the supplier route.
Configuration, quantity, documents, destination, shipping and customization can change B2B commercial terms.
The sensing technology determines which radiation can be measured and how the instrument responds.
The range states the minimum and maximum values under specified conditions.
Energy response describes how detector sensitivity changes across radiation energies.
An alarm threshold is a user-set level that triggers an audible, visual or vibration alert.
Calibration evidence documents how a specific instrument was checked against stated references.
Share your application, required quantity and any OEM requirements. We will review the request and reply with suitable product information and a quotation.
